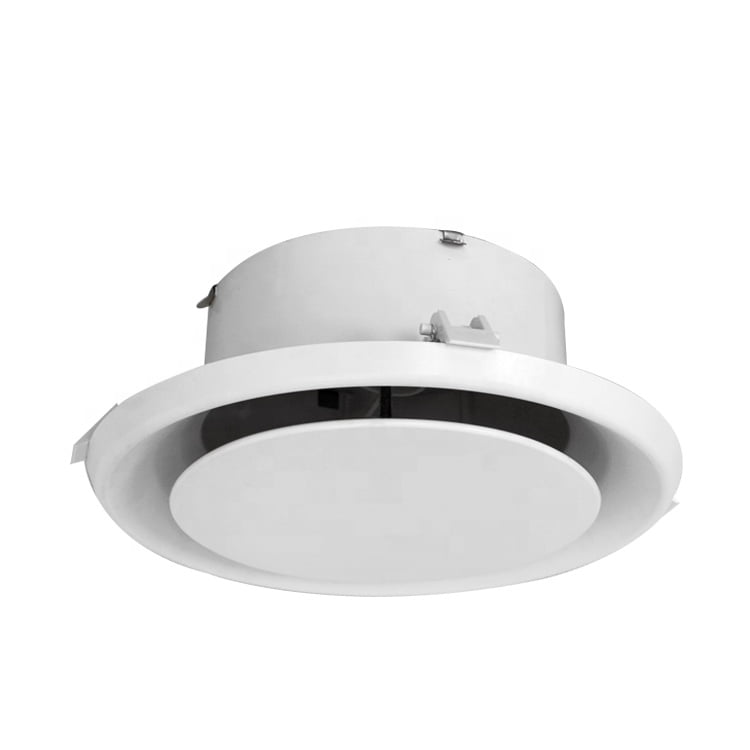

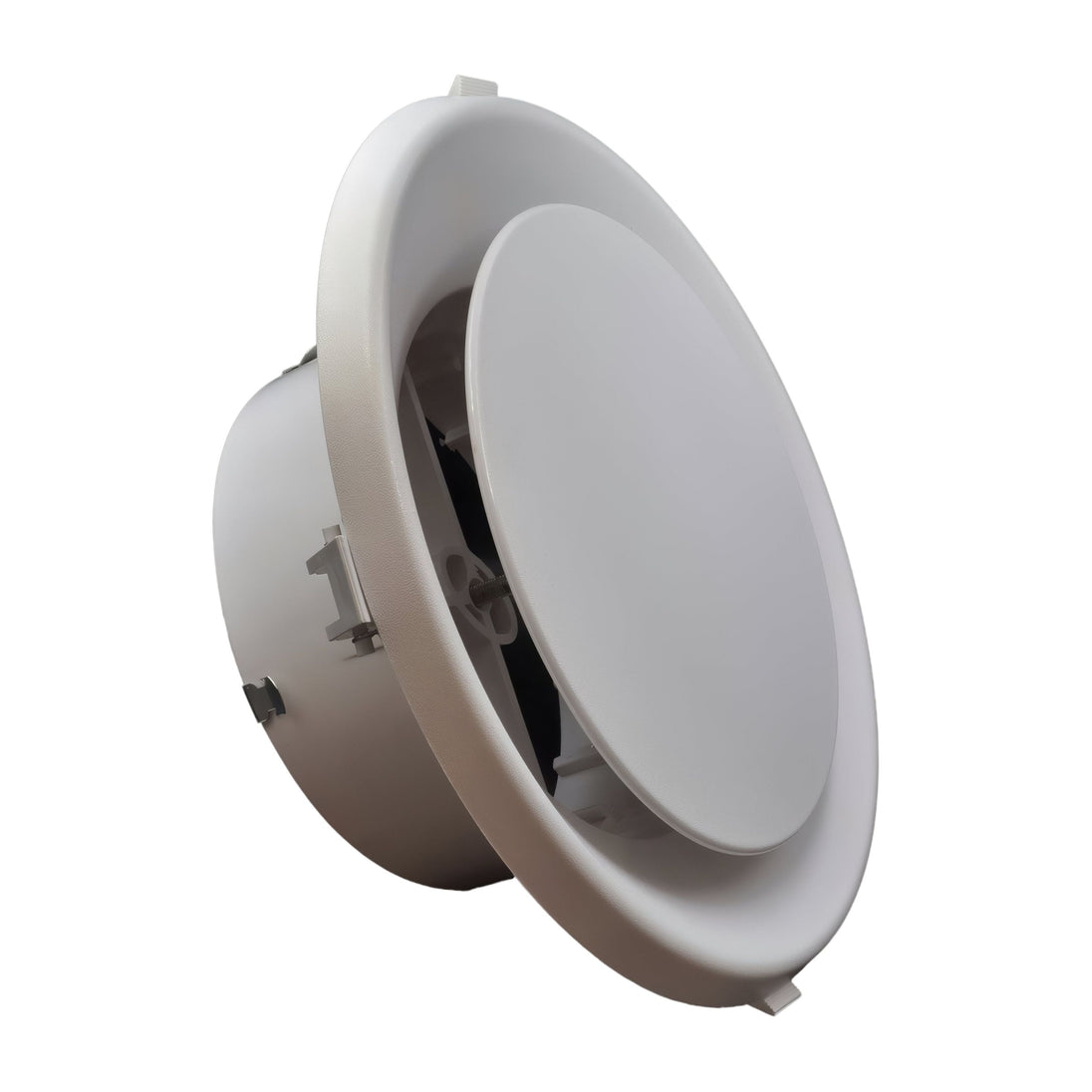

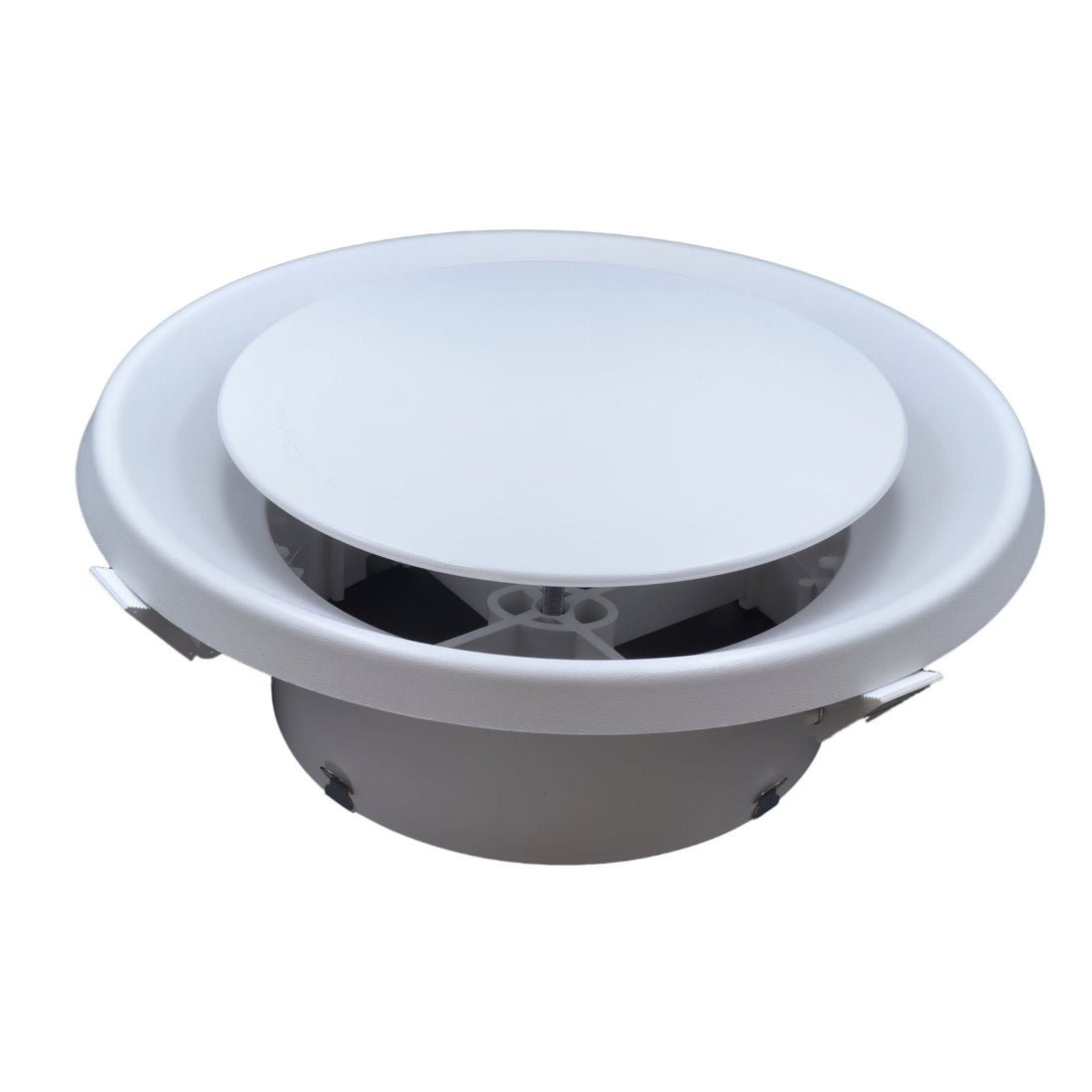

Ceiling Cone Diffuser

The Ductsure PCD250 plastic round Ceiling Diffuser provides efficient and durable ventilation, helping to reduce moisture and improve air flow. Its high-quality plastic construction ensures long-lasting use, while the 320mm size makes it suitable for a variety of applications. Improve your air flow with this reliable vent.

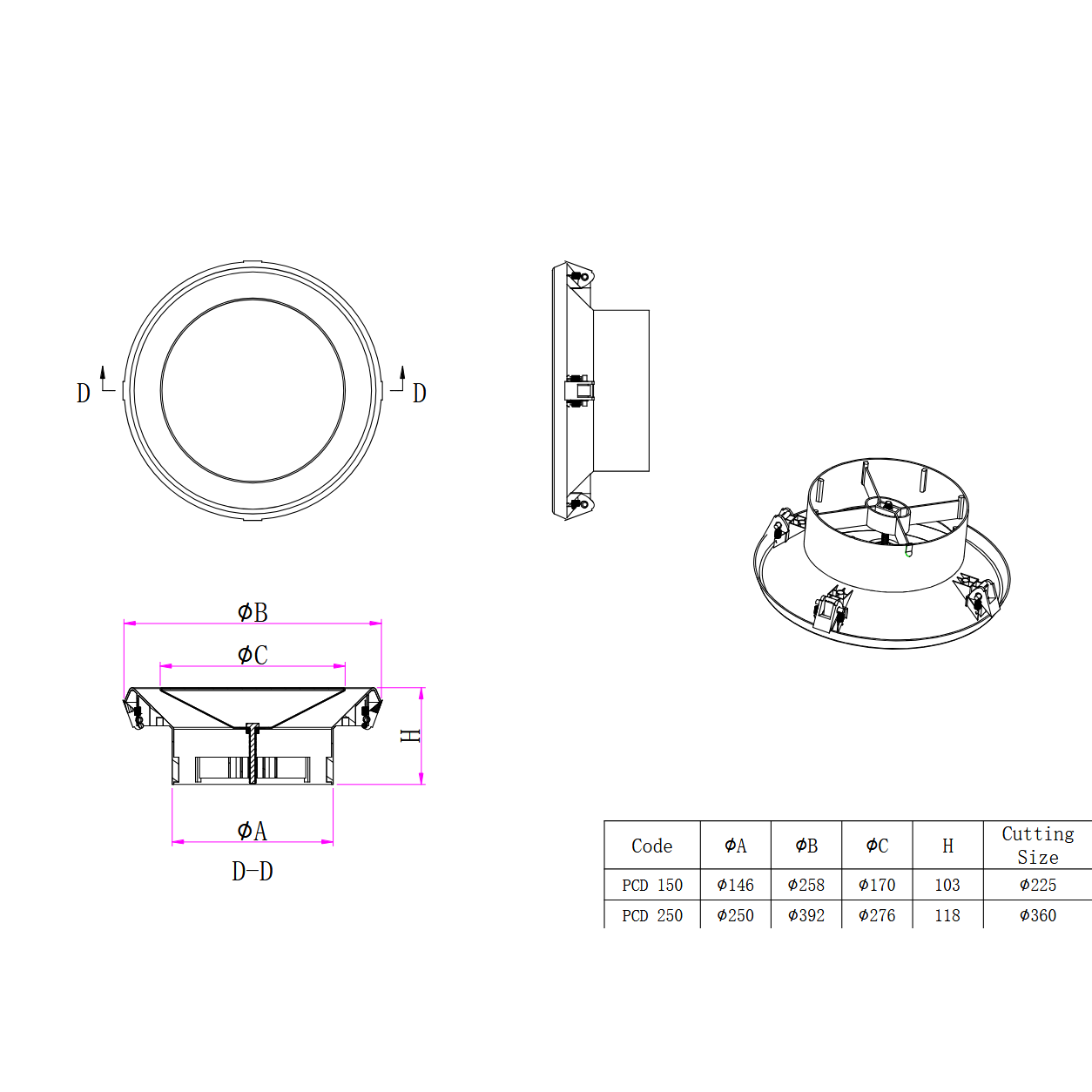

Specifications

  • Part no: PCD250.
  • Snap in fit.
  • Imperial 10" or 250mm
  • Vent facing size 392mm round.
  • Max hole size 360mm round.
  • Ducting size 250mm.
  • White plastic.

Installation

  • Mark out and cut a hole using the template provided on the box.
  • Attach flexible duct to the diffuser.
  • Open the four toggle clips on the diffuser.
  • Raise diffuser to the ceiling ensuring that all toggle clips are in contact with the ceiling.
  • Push upwards until clips lock diffuser in place.

Ductsure

Ductsure PCD250 Plastic Round Ceiling Cone Vent Diffuser

SKU PCD 250
$59.00

Ceiling Cone Diffuser

The Ductsure PCD250 plastic round Ceiling Diffuser provides efficient and durable ventilation, helping to reduce moisture and improve air flow. Its high-quality plastic construction ensures long-lasting use, while the 320mm size makes it suitable for a variety of applications. Improve your air flow with this reliable vent.

Specifications

  • Part no: PCD250.
  • Snap in fit.
  • Imperial 10" or 250mm
  • Vent facing size 392mm round.
  • Max hole size 360mm round.
  • Ducting size 250mm.
  • White plastic.

Installation

  • Mark out and cut a hole using the template provided on the box.
  • Attach flexible duct to the diffuser.
  • Open the four toggle clips on the diffuser.
  • Raise diffuser to the ceiling ensuring that all toggle clips are in contact with the ceiling.
  • Push upwards until clips lock diffuser in place.
$59.00
White ceiling light fixture on a white background White ceiling light fixture on a white background Close-up of a white toilet seat with a visible hinge on a white background White ceiling light fixture on a white background Close-up of a white plastic bracket on a curved white surface White round ceiling vent on a white background Technical drawing of a circular component with dimensions and cutting sizes on a white background
White ceiling light fixture on a white background White ceiling light fixture on a white background Close-up of a white toilet seat with a visible hinge on a white background White ceiling light fixture on a white background Close-up of a white plastic bracket on a curved white surface White round ceiling vent on a white background Technical drawing of a circular component with dimensions and cutting sizes on a white background

Ceiling Cone Diffuser

The Ductsure PCD250 plastic round Ceiling Diffuser provides efficient and durable ventilation, helping to reduce moisture and improve air flow. Its high-quality plastic construction ensures long-lasting use, while the 320mm size makes it suitable for a variety of applications. Improve your air flow with this reliable vent.

Specifications

  • Part no: PCD250.
  • Snap in fit.
  • Imperial 10" or 250mm
  • Vent facing size 392mm round.
  • Max hole size 360mm round.
  • Ducting size 250mm.
  • White plastic.

Installation

  • Mark out and cut a hole using the template provided on the box.
  • Attach flexible duct to the diffuser.
  • Open the four toggle clips on the diffuser.
  • Raise diffuser to the ceiling ensuring that all toggle clips are in contact with the ceiling.
  • Push upwards until clips lock diffuser in place.
