Ductsure White Aluminium Vent Grille – Square Face Slat (520 x 520 mm) - LFD-4A 520/375

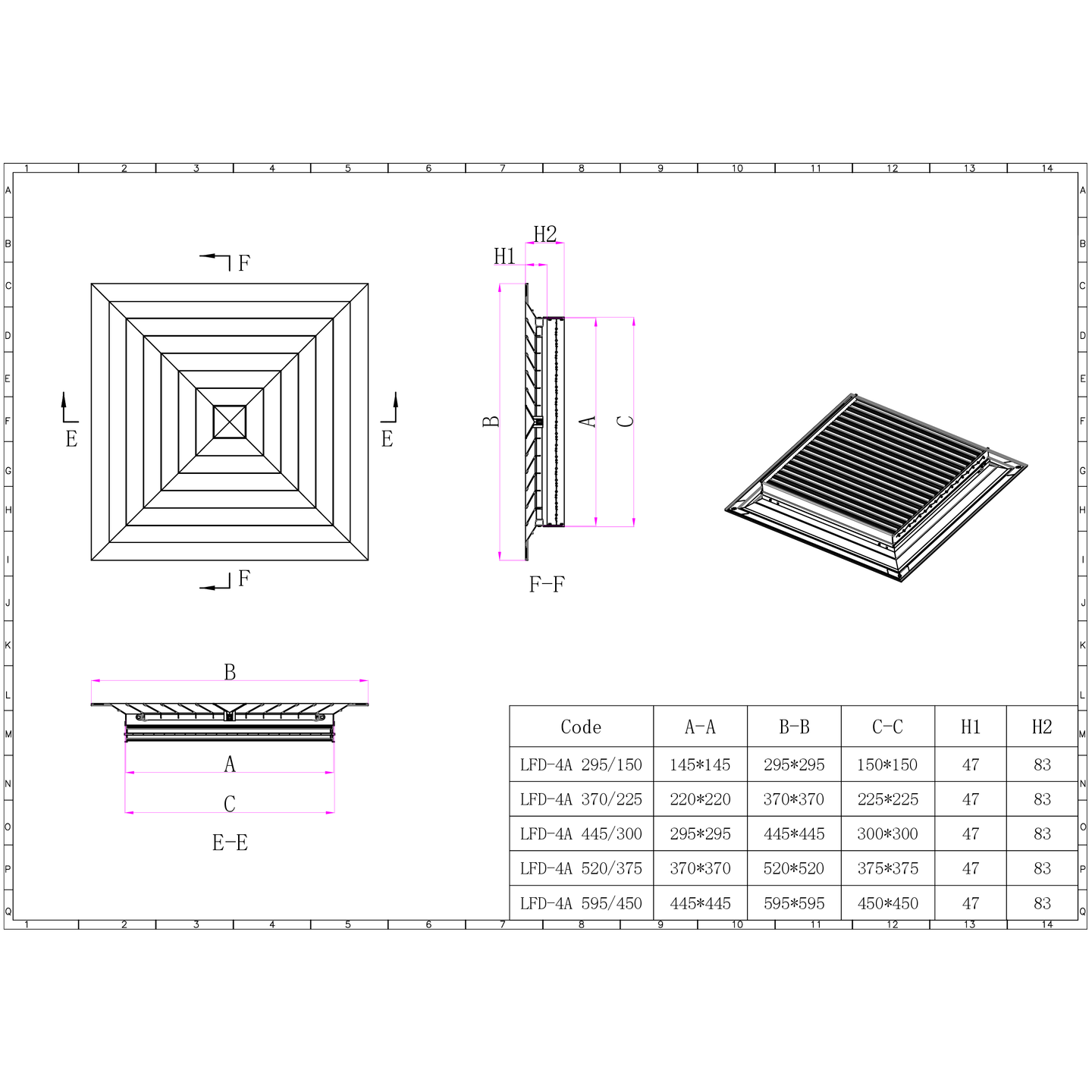

Technical drawing of an air vent with dimensions and codes

Ductsure White Aluminium Vent Grille

Built with precision, the Ductsure White Aluminium Vent Grille provides outstanding airflow control with durable aluminium construction and a smooth, powder-coated white finish for aesthetic appeal.

Key Features:

Slat Configuration: 4-way square face.
Size: 520 x 520 mm (Face Size B-B).

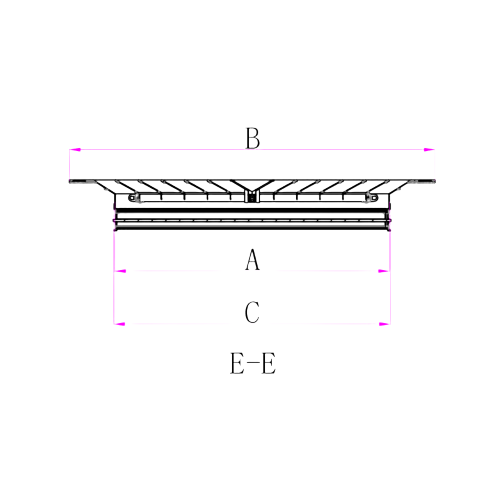

Neck Adaptor: 370 x 370 mm (Dimension A-A).
Duct Opening: 375 x 375 mm (Dimension C-C).

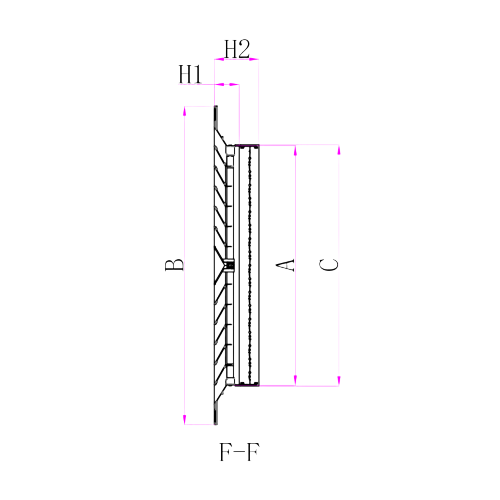

Dimensions: H1 – 47 mm, H2 – 83 mm.
Material: Aluminium construction, resistant to wear.
Finish: White powder-coated for clean modern look.

Benefits:

Wide Coverage – Effective air distribution across larger spaces.
Durability – Built for long-term performance.
Design-Friendly – Minimalistic white finish suits interiors.
Ease of Use – Neck adaptor ensures quick installation.

The Ductsure White Aluminium Vent Grille LFD-4A 520/375 is an excellent choice for commercial and residential ventilation efficiency.

Ductsure

Ductsure White Aluminium Vent Grille – Square Face Slat (520 x 520 mm) - LFD-4A 520/375

SKU LFD-4A 520/375

Regular price: $92.00

Ductsure White Aluminium Vent Grille

Built with precision, the Ductsure White Aluminium Vent Grille provides outstanding airflow control with durable aluminium construction and a smooth, powder-coated white finish for aesthetic appeal.

Key Features:

Slat Configuration: 4-way square face.
Size: 520 x 520 mm (Face Size B-B).
Neck Adaptor: 370 x 370 mm (Dimension A-A).
Duct Opening: 375 x 375 mm (Dimension C-C).
Dimensions: H1 – 47 mm, H2 – 83 mm.
Material: Aluminium construction, resistant to wear.
Finish: White powder-coated for clean modern look.

Benefits:

Wide Coverage – Effective air distribution across larger spaces.
Durability – Built for long-term performance.
Design-Friendly – Minimalistic white finish suits interiors.
Ease of Use – Neck adaptor ensures quick installation.

The Ductsure White Aluminium Vent Grille LFD-4A 520/375 is an excellent choice for commercial and residential ventilation efficiency.

Regular price: $92.00

Quantity

Product Description

Ductsure White Aluminium Vent Grille

Built with precision, the Ductsure White Aluminium Vent Grille provides outstanding airflow control with durable aluminium construction and a smooth, powder-coated white finish for aesthetic appeal.
