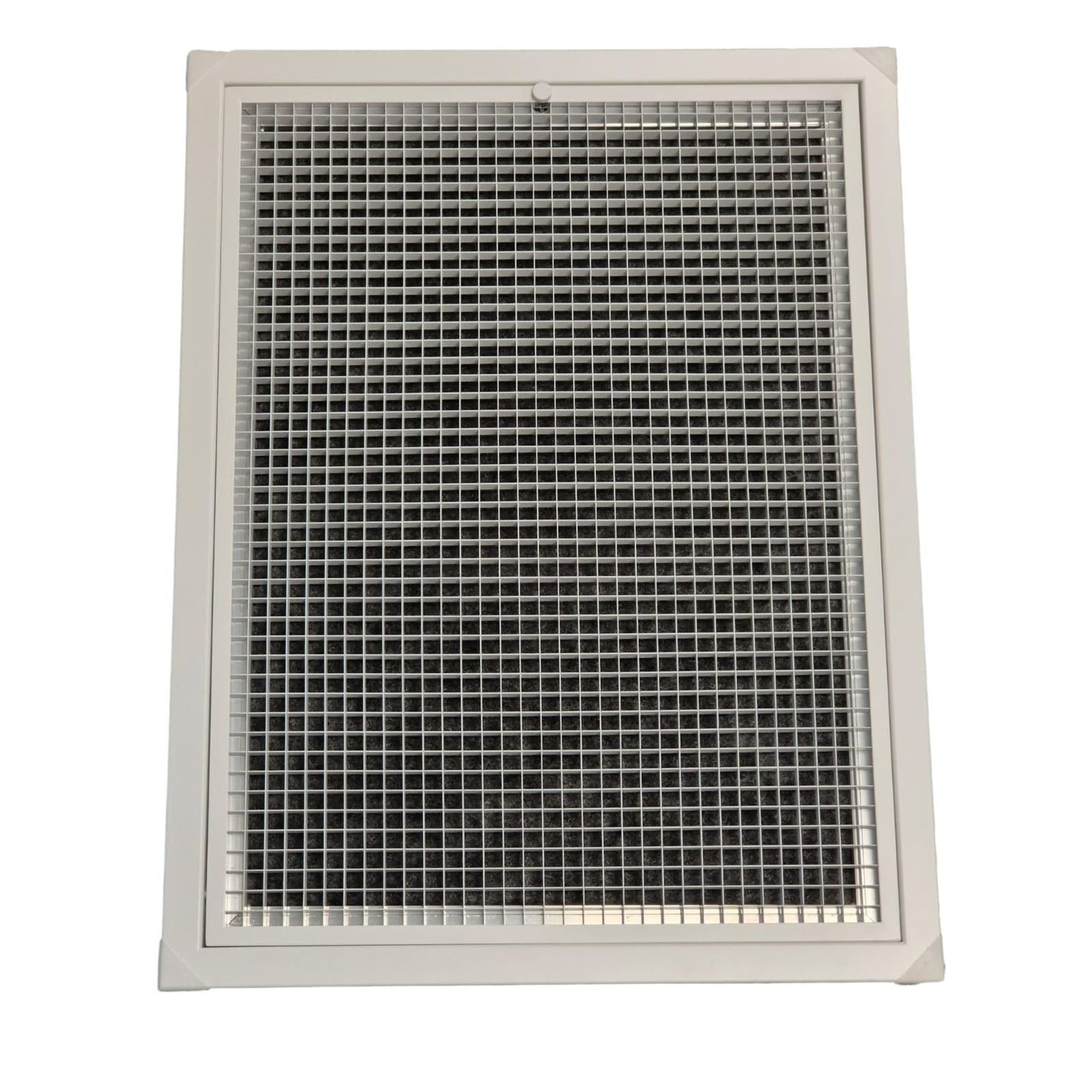

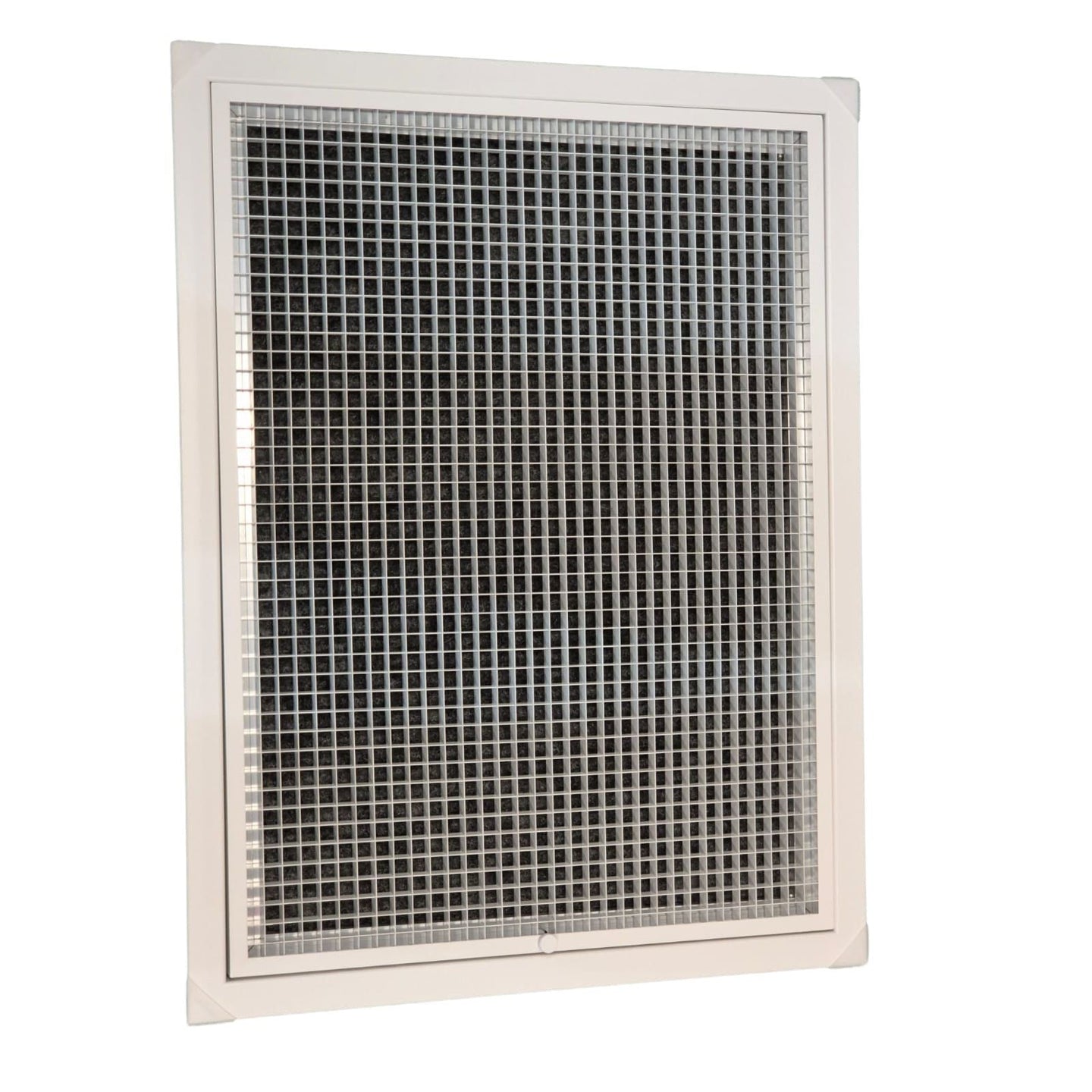

Eggcrate Hinged Polyester Filter – EGHF-P 600550 — Pack of 3

The Eggcrate Hinged Polyester Filter – EGHF-P 600550 is a practical and durable solution for ceiling-mounted return air and exhaust applications, widely used in residential, commercial, and institutional spaces.

Key Features:

  • Pack Size – 3 pieces
  • Application – Ideal for ceiling return air and exhaust ventilation.

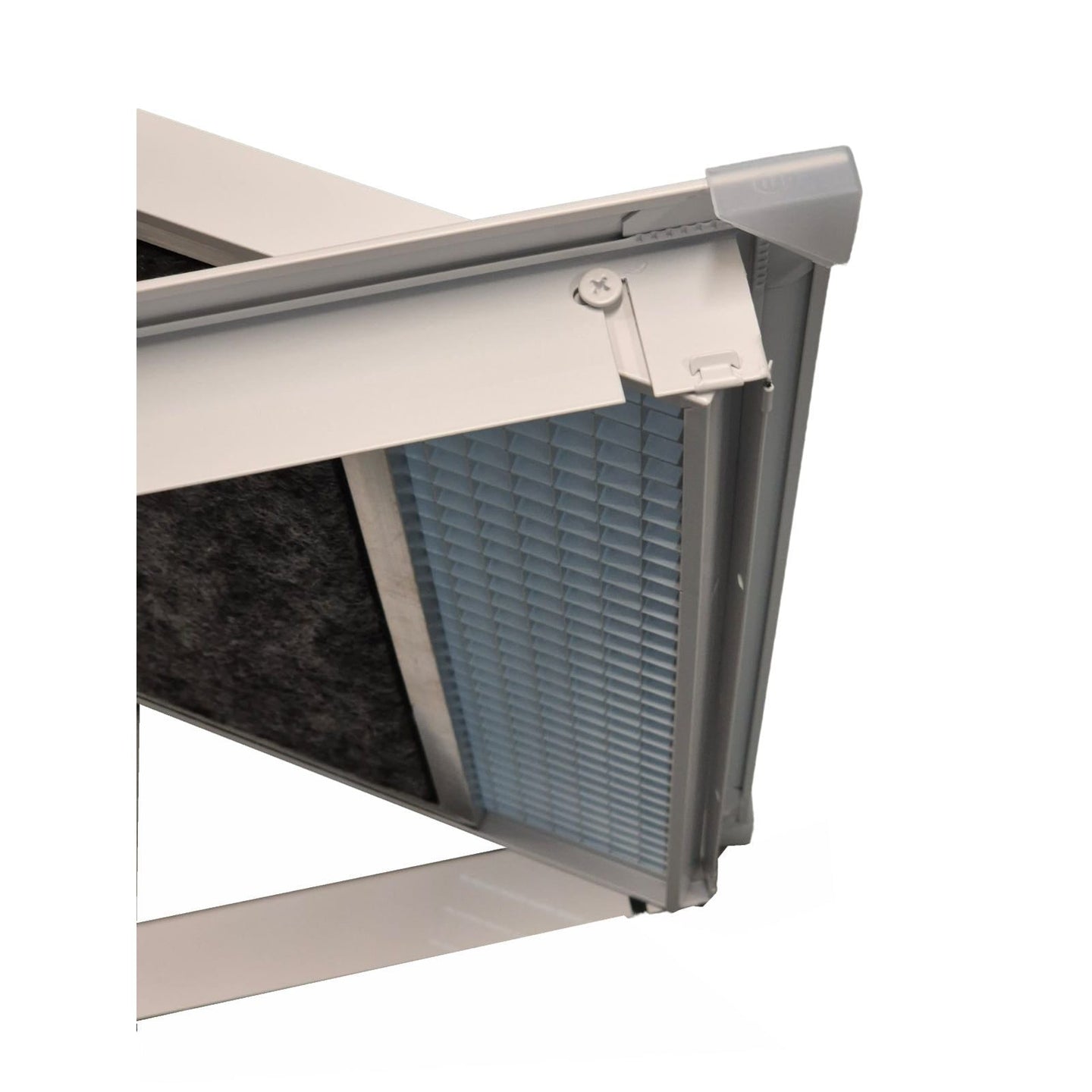

  • Construction – Aluminium profile frame (6063 T5) with hinged grille, powder-coated white, and screw-secured removable core.

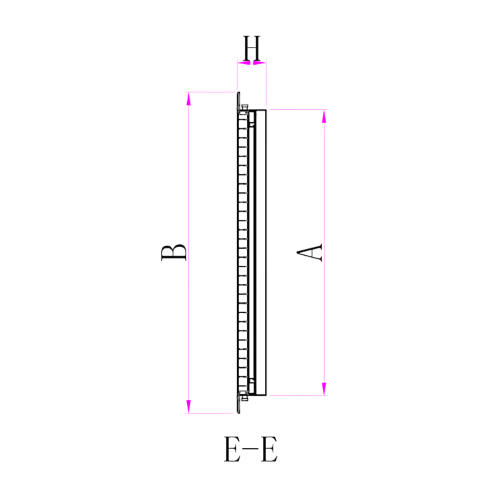

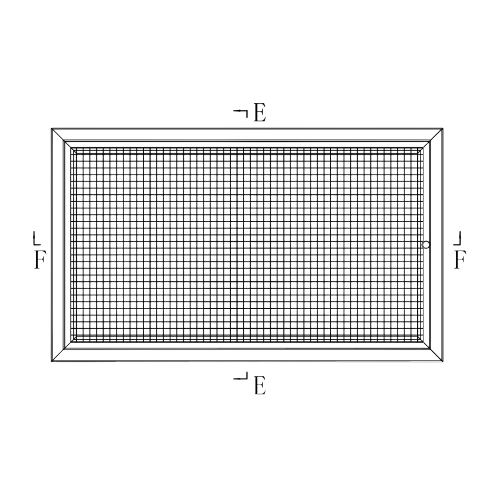

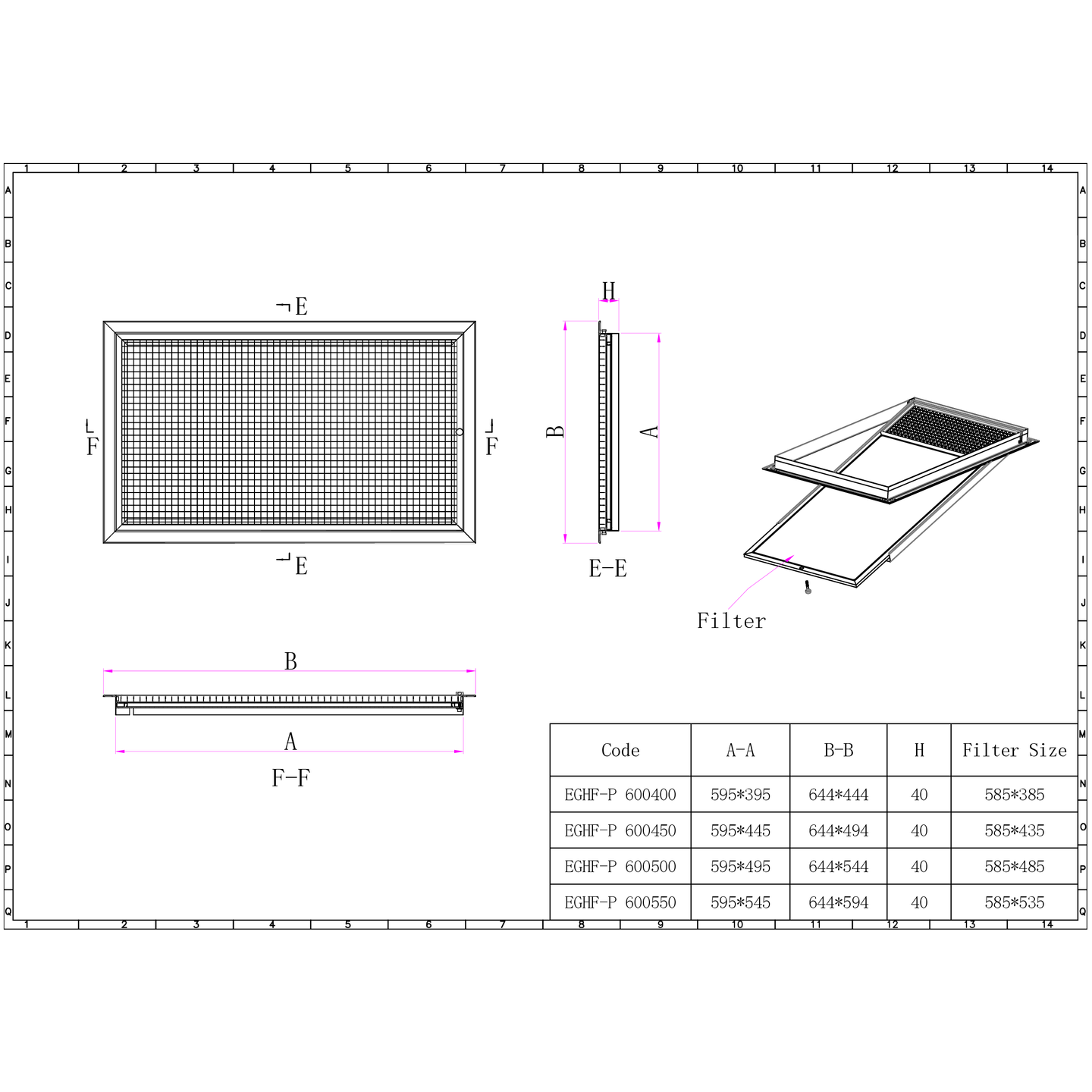

  • Dimensions –
    • Outside (B-B): 644 x 594 mm
    • Inside (A-A): 595 x 545 mm
  • Height – Standard total height of 40 mm.
  • Finish – Supplied in powder-coated white; other finishes available on request. Size customization supported.

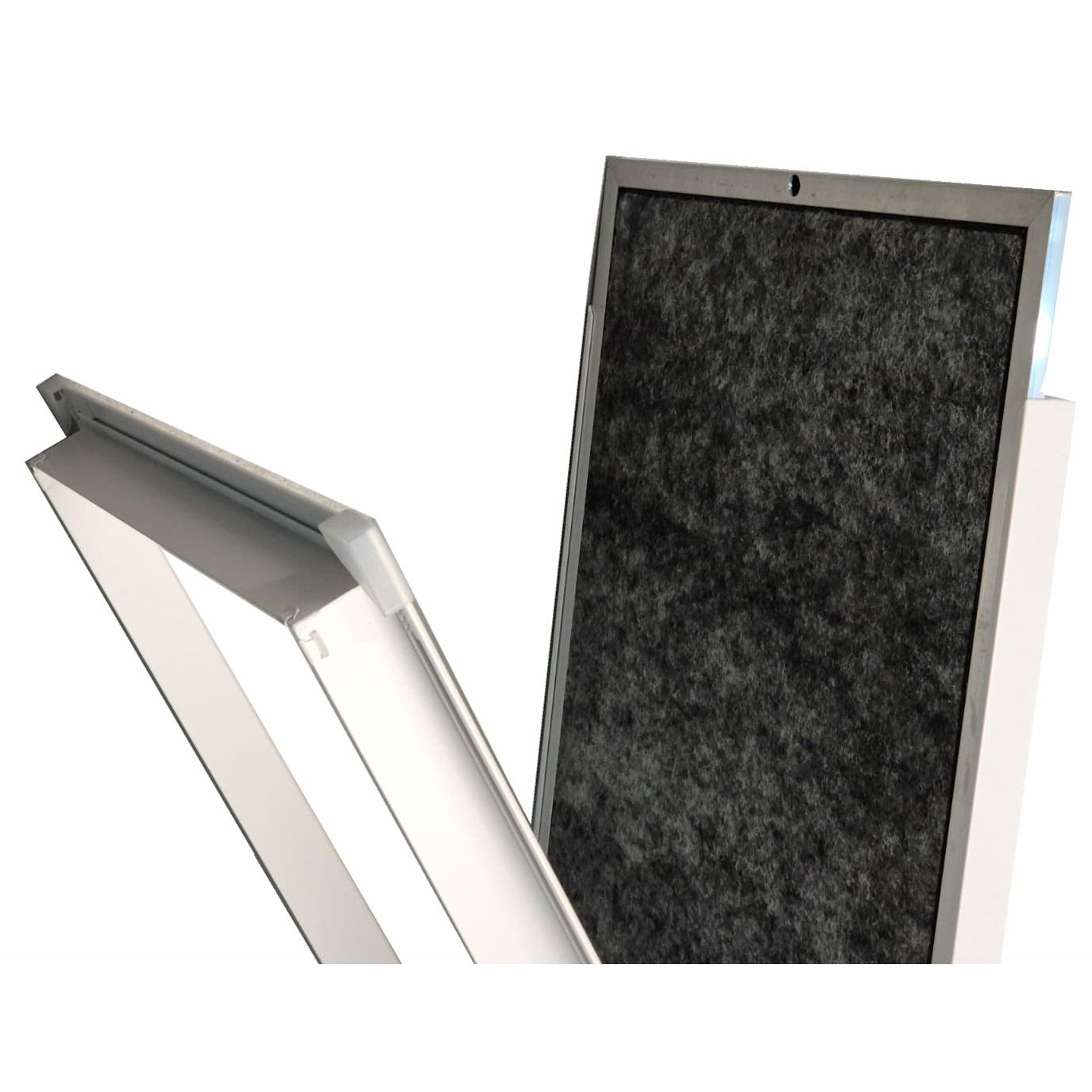

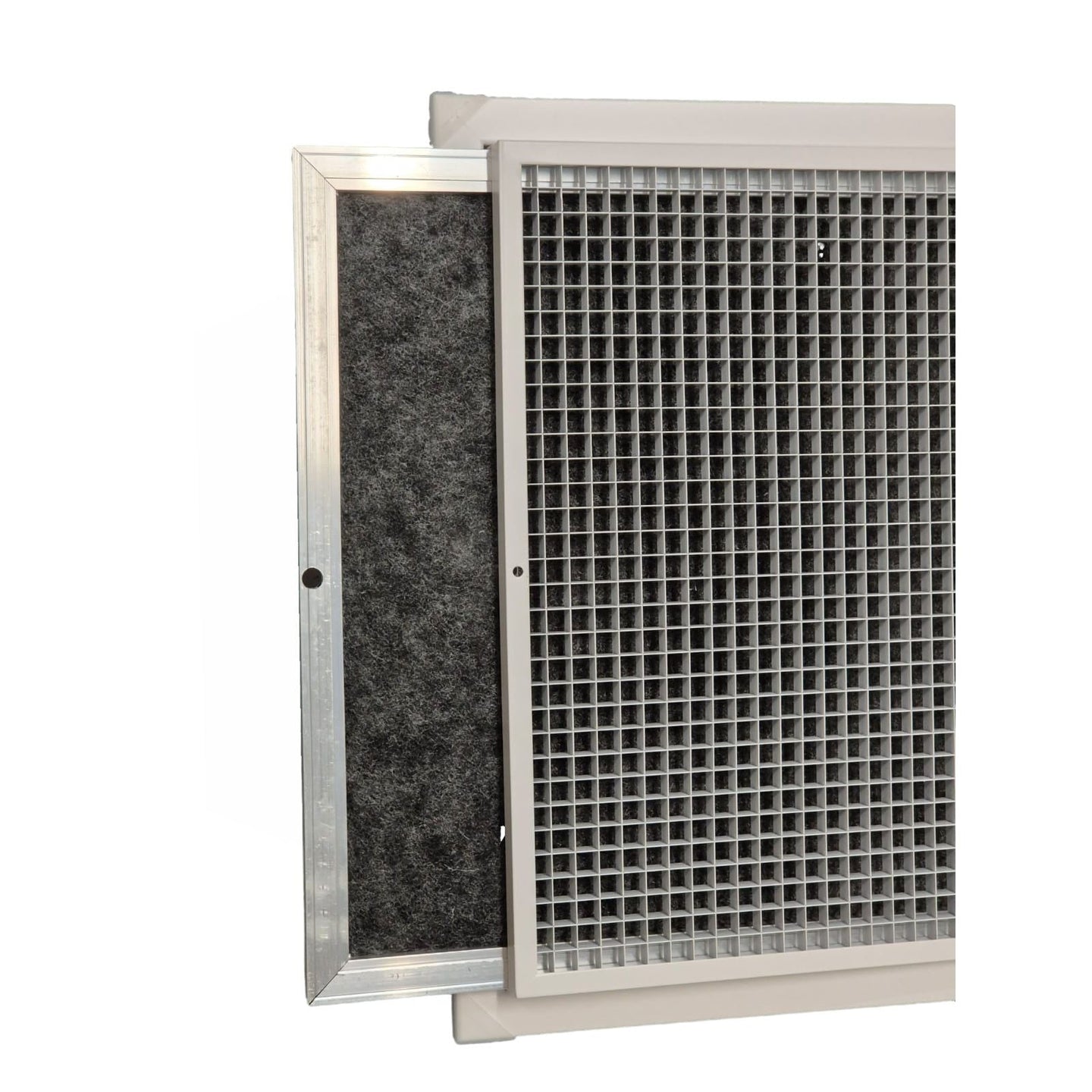

  • Filter Media – Washable and replaceable G4 grade polyester (black or white standard).
  • Core – Aluminium eggcrate grid (12.7 x 12.7 x 12.7 mm), removable and lockable by face screw.

Benefits:

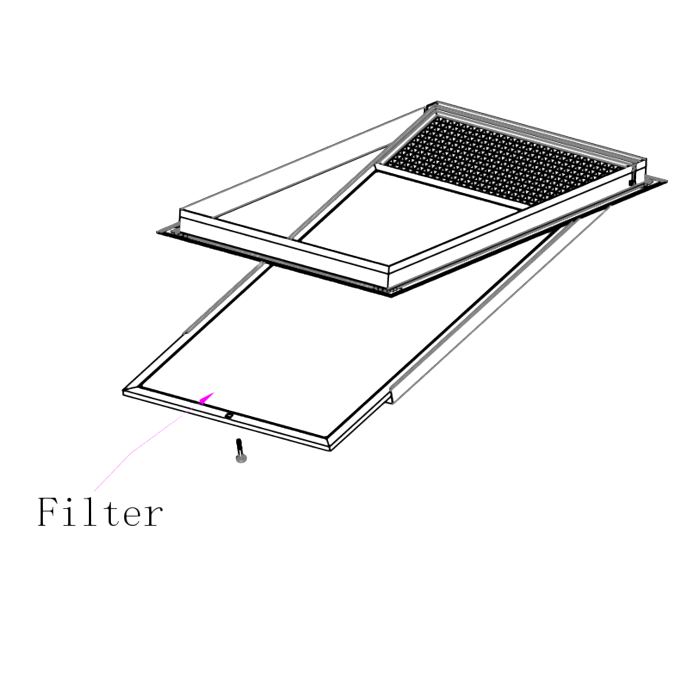

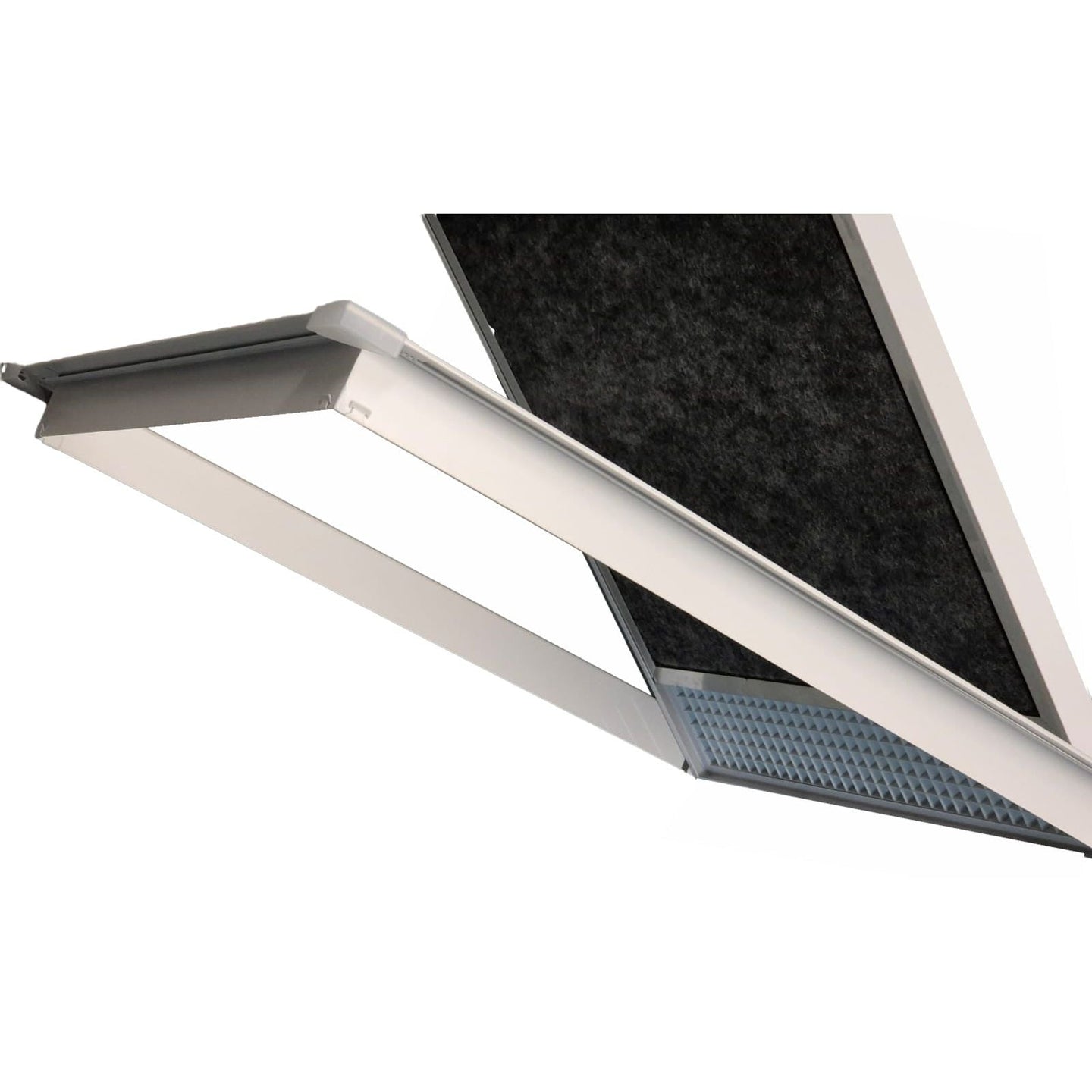

  • Hinged design enables easy access for filter replacement and cleaning.
  • Powder-coated white finish blends seamlessly with ceiling interiors.
  • Washable G4 polyester filter ensures low maintenance and long service life.
  • Durable aluminium construction provides corrosion resistance and strength.

The Eggcrate Hinged Polyester Filter – EGHF-P 600550 delivers a cost-effective, hygienic, and architecturally adaptable filtration solution for modern HVAC systems.

Ductsure

Pack of 3 Ductsure Eggcrate Hinged Filter EGHF-P 600550 (595x545mm)

SKU EGHF-P 600550-3
$384.00

Eggcrate Hinged Polyester Filter – EGHF-P 600550 — Pack of 3

The Eggcrate Hinged Polyester Filter – EGHF-P 600550 is a practical and durable solution for ceiling-mounted return air and exhaust applications, widely used in residential, commercial, and institutional spaces.

Key Features:

  • Pack Size – 3 pieces
  • Application – Ideal for ceiling return air and exhaust ventilation.
  • Construction – Aluminium profile frame (6063 T5) with hinged grille, powder-coated white, and screw-secured removable core.
  • Dimensions –
    • Outside (B-B): 644 x 594 mm
    • Inside (A-A): 595 x 545 mm
  • Height – Standard total height of 40 mm.
  • Finish – Supplied in powder-coated white; other finishes available on request. Size customization supported.
  • Filter Media – Washable and replaceable G4 grade polyester (black or white standard).
  • Core – Aluminium eggcrate grid (12.7 x 12.7 x 12.7 mm), removable and lockable by face screw.

Benefits:

  • Hinged design enables easy access for filter replacement and cleaning.
  • Powder-coated white finish blends seamlessly with ceiling interiors.
  • Washable G4 polyester filter ensures low maintenance and long service life.
  • Durable aluminium construction provides corrosion resistance and strength.

The Eggcrate Hinged Polyester Filter – EGHF-P 600550 delivers a cost-effective, hygienic, and architecturally adaptable filtration solution for modern HVAC systems.
$384.00
Rectangular air filter with grid pattern on a white background Grid-like filter on a white background Air filter with pleated and grid design on a white background Air filter with pleated design on a white background Two air filters, one silver and one black, on a white background Filter replacement for a heating or cooling system on a white background Diagram of a filter being installed into a rectangular frame on a white background Technical drawing of an air filter with dimensions and code details on a white background White background grid showing labeled forces diagram Technical drawing of a vertical object with dimensions labeled A, B, and H on a white background. Technical drawing of a cross-section with labeled dimensions on a white background
Rectangular air filter with grid pattern on a white background Grid-like filter on a white background Air filter with pleated and grid design on a white background Air filter with pleated design on a white background Two air filters, one silver and one black, on a white background Filter replacement for a heating or cooling system on a white background Diagram of a filter being installed into a rectangular frame on a white background Technical drawing of an air filter with dimensions and code details on a white background White background grid showing labeled forces diagram Technical drawing of a vertical object with dimensions labeled A, B, and H on a white background. Technical drawing of a cross-section with labeled dimensions on a white background

Eggcrate Hinged Polyester Filter – EGHF-P 600550 — Pack of 3

The Eggcrate Hinged Polyester Filter – EGHF-P 600550 is a practical and durable solution for ceiling-mounted return air and exhaust applications, widely used in residential, commercial, and institutional spaces.

Key Features:

  • Pack Size – 3 pieces
  • Application – Ideal for ceiling return air and exhaust ventilation.
  • Construction – Aluminium profile frame (6063 T5) with hinged grille, powder-coated white, and screw-secured removable core.
  • Dimensions –
    • Outside (B-B): 644 x 594 mm
    • Inside (A-A): 595 x 545 mm
  • Height – Standard total height of 40 mm.
  • Finish – Supplied in powder-coated white; other finishes available on request. Size customization supported.
  • Filter Media – Washable and replaceable G4 grade polyester (black or white standard).
  • Core – Aluminium eggcrate grid (12.7 x 12.7 x 12.7 mm), removable and lockable by face screw.

Benefits:

  • Hinged design enables easy access for filter replacement and cleaning.
  • Powder-coated white finish blends seamlessly with ceiling interiors.
  • Washable G4 polyester filter ensures low maintenance and long service life.
  • Durable aluminium construction provides corrosion resistance and strength.

The Eggcrate Hinged Polyester Filter – EGHF-P 600550 delivers a cost-effective, hygienic, and architecturally adaptable filtration solution for modern HVAC systems.
