4-Way vs 2-Way Air Diffusers: Understanding Slat Configurations for Better Airflow

When designing or upgrading an HVAC system, air diffusers often receive less attention than they deserve. Yet the type of diffuser you choose can have a significant impact on airflow distribution, comfort, and overall system efficiency. One of the most common comparisons is 4-Way vs 2-Way air diffusers.

Both options are designed to distribute conditioned air into a room, but their slat configurations and airflow patterns serve different purposes. Understanding how these diffusers work will help you choose the best option for your space, whether it’s a residential home, commercial office, or industrial environment.

What Is an Air Diffuser?

An air diffuser is a ventilation component that spreads air evenly throughout a room. Installed in ceilings or walls, diffusers help prevent strong drafts, hot or cold spots, and uneven air distribution. The design of the diffuser—particularly the number and orientation of its slats—determines how air flows once it enters the space.

The two most common configurations are:

• 2-Way air diffusers


• 4-Way air diffusers


Each type influences airflow direction, room coverage, and comfort levels differently.

Understanding Slat Configurations

Slats, also known as vanes, are the angled blades inside a diffuser that guide airflow. The number of slats and their orientation determine how far and in which directions air is dispersed.

In the debate of 4-Way vs 2-Way air diffusers, the slat configuration is the primary factor affecting performance.

What Is a 2-Way Air Diffuser?

A 2-Way air diffuser directs airflow in two opposite directions. These diffusers are commonly installed near walls or along room edges, where air needs to be distributed across a space without blowing directly into the wall.

Key Characteristics of 2-Way Air Diffusers

• Two directional airflow paths


• Controlled, linear air distribution


• Ideal for perimeter installations


Advantages of 2-Way Air Diffusers

1. Targeted Airflow Control
2-Way diffusers are excellent for directing air along a specific path, making them ideal for long or narrow rooms.

2. Reduced Drafts Near Walls
Because airflow is directed away from walls, these diffusers help minimise drafts and improve comfort near room edges.

3. Better Performance in Rectangular Spaces
Hallways, offices, and rooms with elongated layouts benefit from the focused airflow pattern of 2-way diffusers.

Limitations of 2-Way Air Diffusers

• Limited room coverage compared to 4-way diffusers


• Less effective for large, open areas


• Requires careful placement for optimal performance

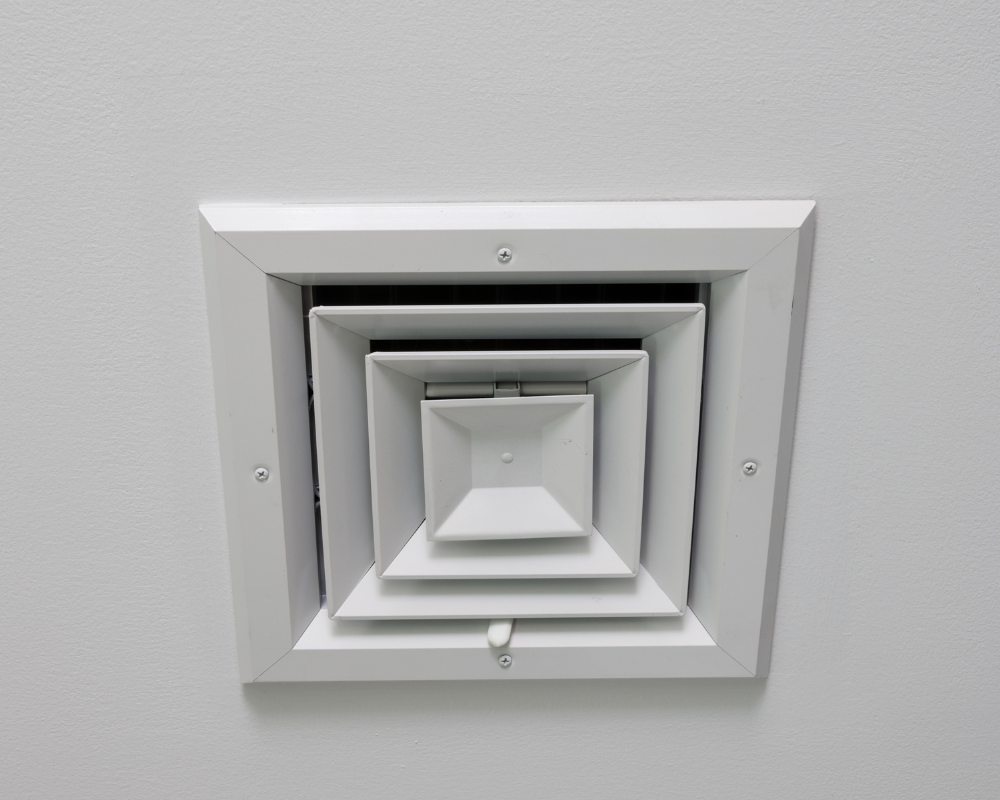

What Is a 4-Way Air Diffuser?

A 4-Way air diffuser distributes air in four directions, typically at 90-degree angles from the centre of the unit. These diffusers are most commonly installed in the centre of ceilings.

Key Characteristics of 4-Way Air Diffusers

• Four-directional airflow


• Wide, even air distribution


• Ideal for central ceiling placement


Advantages of 4-Way Air Diffusers

1. Even Air Distribution
4-Way diffusers are designed to spread air evenly across the entire room, reducing hot and cold spots.

2. Ideal for Open Spaces
Living rooms, open-plan offices, and commercial spaces benefit from the broad airflow coverage.

3. Enhanced Comfort
By distributing air more evenly, 4-way diffusers help maintain consistent temperatures throughout the space.

Limitations of 4-Way Air Diffusers

• Less suitable for installation near walls


• Can cause drafts if installed incorrectly


• May be unnecessary for small rooms


4-Way vs 2-Way Air Diffusers: Key Differences

Which Diffuser Is Better for Your Space?

The choice between 4-Way vs 2-Way air diffusers depends largely on room layout, ceiling height, and airflow requirements.

Best Use Cases for 2-Way Air Diffusers

• Narrow or rectangular rooms


• Perimeter ceiling installations


• Offices and corridors


Best Use Cases for 4-Way Air Diffusers

• Large, open-plan areas


• Central ceiling positions


• Residential living spaces and commercial interiors

Energy Efficiency and Airflow Performance

Choosing the correct diffuser type can improve HVAC efficiency. Poor airflow distribution forces systems to work harder, increasing energy consumption.

• 2-Way diffusers improve efficiency by directing air where it’s needed


• 4-Way diffusers enhance efficiency by evenly distributing air across large areas


Proper diffuser selection reduces temperature fluctuations and improves system longevity.

Installation Considerations

Before installing either diffuser type, consider:

• Ceiling height


• Room size and shape


• HVAC system capacity


• Duct location


Correct sizing and placement are critical to avoiding drafts and maximising airflow performance.

Common Mistakes to Avoid

• Installing a 4-way diffuser near a wall


• Using a 2-way diffuser in large open spaces


• Incorrect sizing leading to excessive air velocity


• Ignoring ceiling height when selecting a diffuser


Final Thoughts: 4-Way vs 2-Way Air Diffusers

When comparing 4-Way vs 2-Way air diffusers, there’s no universal winner. Each diffuser type is designed for specific airflow needs.

• Choose 2-Way air diffusers for focused airflow and perimeter installations

• Choose 4-Way air diffusers for even air distribution in open spaces

Understanding slat configurations allows you to select the right diffuser for better comfort, improved airflow, and enhanced HVAC performance.
